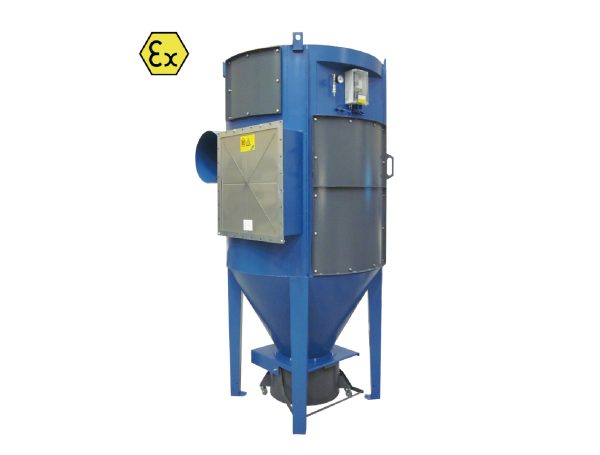

ATEX Cyclone Dust Filter ACF-A
The Cyclone Filter ACF-A is a highly efficient cyclone ATEX filter zones 21/22 and 21/21 and delivered with explosion membrane including mating flange.
We can design and install your LEV system, including the products in this range. Please contact us to find out more.
Visit our LEV Systems page and see Case Studies here.
More information
ATEX Cyclone Filter (ACF-A 52H - 234H)
A highly efficient cyclone filer for ATEX zones 21/22 and 21/21with a differential pressure controlled for compressed air cleaning and delivered standard with explosion membrane including mating flange.
Construction
- Digital differential pressure display included
- Pressure tank with manometer built into cabinet
- Maxi325 jet pulse system
- Standard filter material: G113 dust class M
- High performance pr-separator by cyclone - increases filter life
- Easy service access by front doors
- Dust container with quick lock system mounted with system flange 400
- Standard operation below max. 4000Pa. Reinforced units for higher vacuum are available
Application
Filtration of various dust sorts e.g. powder mix, aluminium dust, wood dust, and similar applications.
